diameter 55 gallon drum: Your Complete Spec Guide

When you're planning out your space or logistics, the first number you'll likely need is the diameter of a 55 gallon drum, which is typically 22.5 inches (57.2 cm). This measurement has become the industry benchmark, making it much easier to ensure drums fit standard equipment like dollies, racks, and pumps.

Quick Reference: 55 Gallon Drum Dimensions

While 22.5 inches is the standard for a steel drum's external diameter, it's not the only number to keep in mind. The material and type of drum can cause slight variations. Plastic drums, for instance, tend to have thicker walls, which can push their outer diameter up a bit.

Getting these dimensions right is critical for everything from planning warehouse layouts to making sure your equipment is compatible.

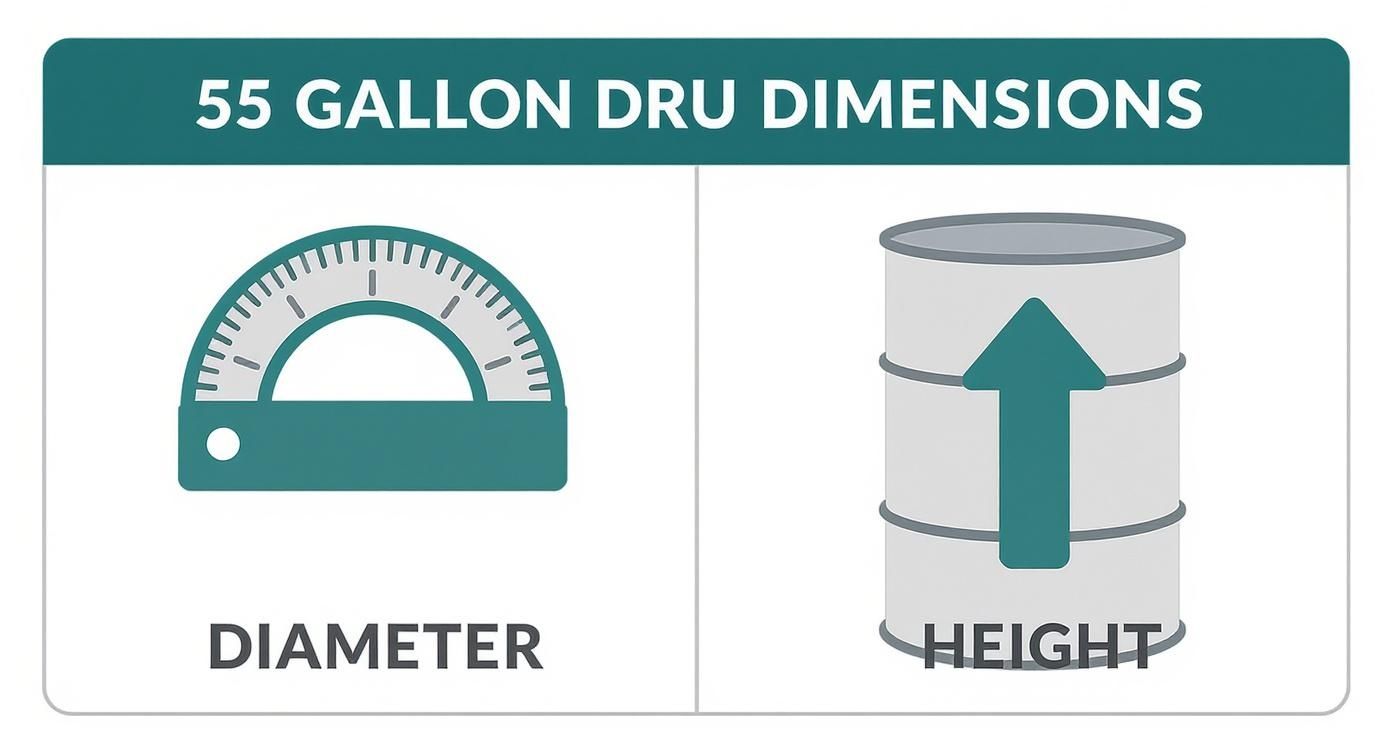

This infographic breaks down the key measurements you'll encounter on a typical 55-gallon drum.

As the visual shows, diameter and height are the two most important specs for any kind of space planning. While the standard dimensions are a reliable starting point, remember that regional manufacturers might produce drums with slight variations. For example, some specialized fibre drums can have diameters up to 23 inches to accommodate specific industrial requirements.

These dimensions are also the foundation for calculating a drum's exact holding capacity. If you need to work with metric units, you can find a detailed guide on converting 55 gallons to litres on our site.

The best advice? Always confirm the exact specifications with your supplier before placing a large order. A quick check can save a lot of headaches down the road.

How Drum Material Affects Diameter

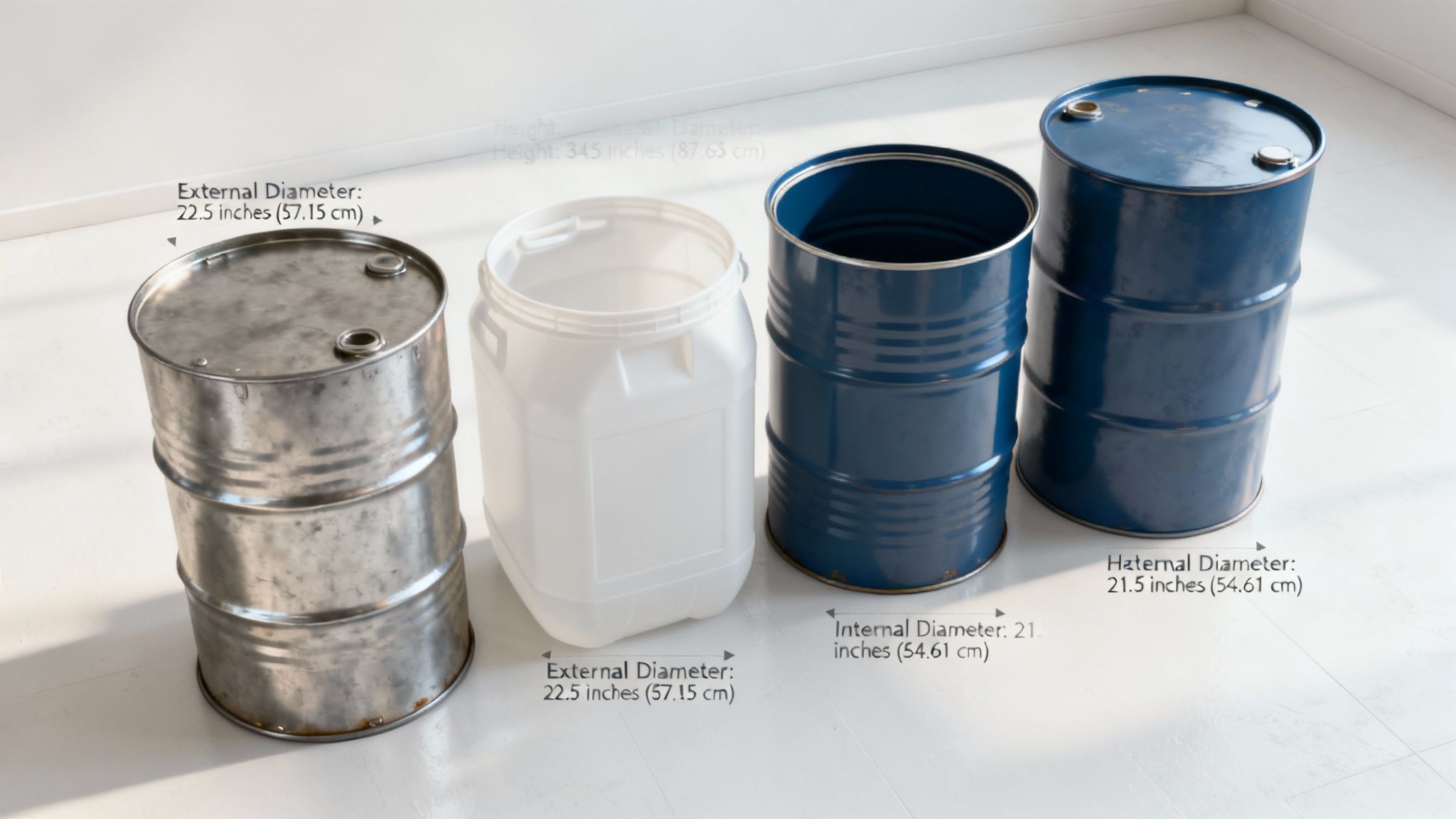

You'd think a 55-gallon drum is a 55-gallon drum, but the material it's made from—usually steel or plastic—plays a big role in its final dimensions. The way these materials are manufactured and their inherent properties mean you’ll see slight but important differences in wall thickness and, therefore, the outside diameter.

Steel drums are prized for their strength and rigidity. This toughness means they can be made with thinner walls while still meeting all the necessary safety and durability standards. Because of this, the diameter of a 55 gallon drum made of steel is remarkably consistent, almost always landing squarely at the 22.5-inch mark. This predictability is a huge advantage for automated handling systems and when packing drums tightly into storage racks.

Plastic Drums and Dimensional Differences

On the other hand, plastic (or polyethylene) drums are fantastic for their chemical resistance. But to get the same level of structural strength as steel, their walls need to be thicker. This extra material pushes the external diameter out, often to around 23.5 inches (59.7 cm) or sometimes a touch more.

That one-inch difference might not sound like much, but it can create major headaches. A drum dolly or a storage rack built to the exact specs of a steel drum may not fit a slightly wider plastic one, causing serious fitment problems.

Key Takeaway: Before you place an order, always double-check the external diameter with your supplier. This is especially true if you’re buying plastic drums to use with equipment that was designed for steel drum dimensions. A quick confirmation can save you a lot of trouble with racks, pumps, and handling gear down the line.

It's also worth noting how specs are added to the drums themselves. For a permanent solution on metal, many manufacturers rely on processes like laser engraving metal. Understanding how materials behave is key in many industries, a topic we explore further in our guide to plastic water storage tanks.

Open-Head vs. Tight-Head Drum Dimensions

It’s not just the material that changes a drum's size; the style of the top is just as important, especially when it comes to the overall diameter. You’ll mainly find two types: open-head drums, which have a removable lid, and tight-head drums, which are sealed and have bung holes. The way they're built creates some key differences you need to know about.

A tight-head drum is pretty straightforward. It's a single, sealed container where the top, or chime, is permanently part of the drum. This gives it a clean, consistent diameter all the way down, making it a predictable choice for automated equipment and for packing into tight spaces.

How Open-Head Drums Affect Diameter

An open-head drum, on the other hand, is built for easy access. It has a lid that comes completely off, held in place by a lever-lock ring. This locking ring sits on the outside of the top chime, making the drum just a little bit wider right at the very top.

While the body of the drum will have the standard diameter of a 55-gallon drum, that locking ring can add an inch or more to the width. It might not sound like much, but for equipment with tight tolerances, it's a make-or-break detail.

Practical Example: Let's say your drum lifter has a clamp set for a 22.5-inch diameter. It'll grab a standard tight-head steel drum with no problem. But that same clamp might not get a solid grip on an open-head drum if it has to close around the slightly wider locking ring.

If you're dealing with solids or need to get inside the drum often, you'll need an open-head design. You can see how the mechanism works on something like a 55-gallon open-head fiber drum. Just remember to always check the maximum "at-the-chime" diameter on any open-head model to make sure it will fit with your racks, dollies, and other equipment.

How to Measure a 55 Gallon Drum Accurately

Getting the right measurements for a 55-gallon drum is more than just a quick check—it's the key to making sure everything from your pallet racks to your pump fittings will actually work. A small mistake here can cause major headaches down the line. Luckily, getting a reliable number is straightforward if you know what to look for.

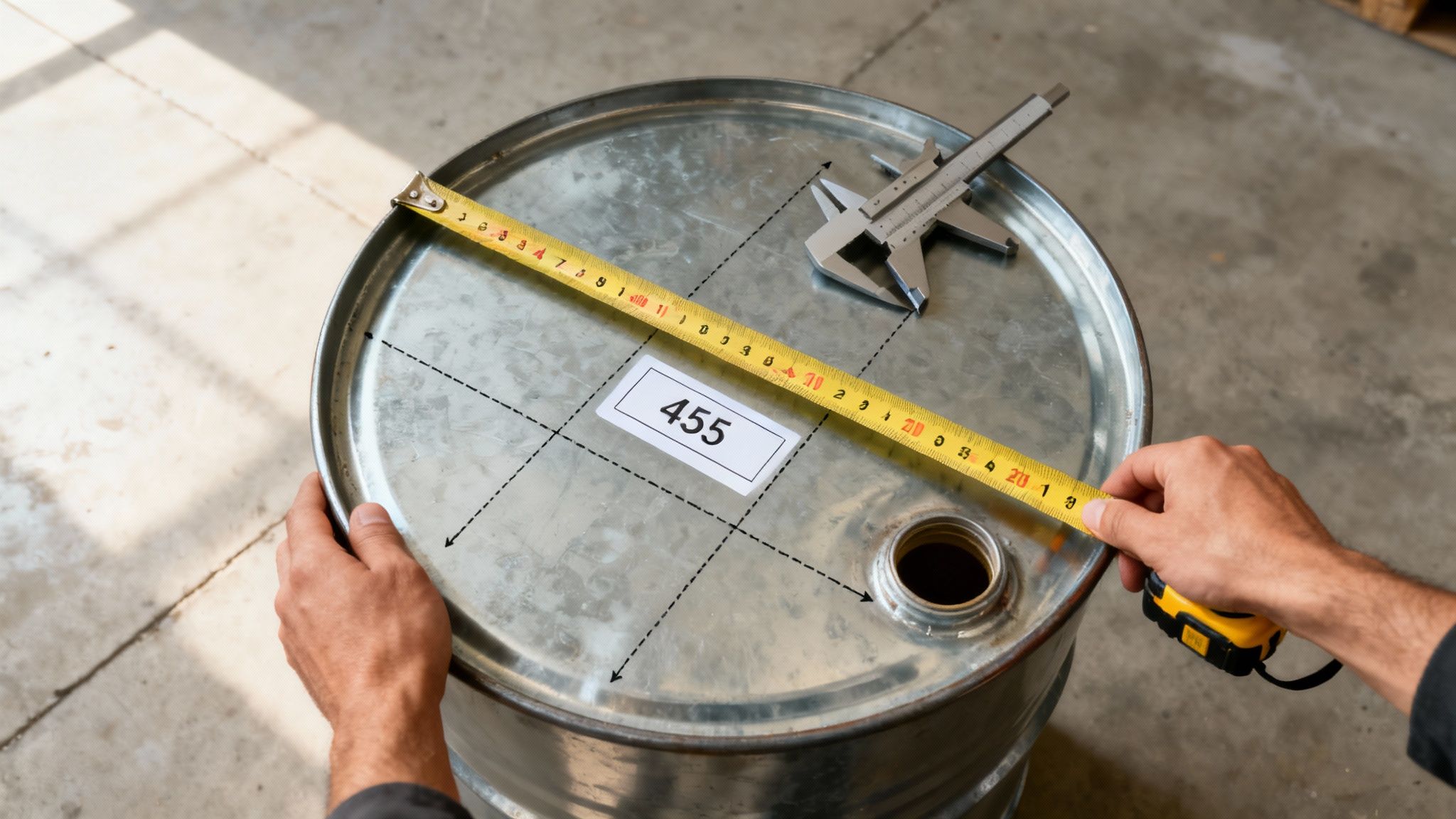

The best way to get a precise reading is with a rigid tape measure or a large set of calipers. Lay your tape flat across the lid, making sure it runs directly over the centre. Take a measurement, then rotate the tape 90 degrees and measure again. Averaging these two numbers will give you a solid, reliable external diameter.

Common Measurement Mistakes to Avoid

One of the most common mistakes is measuring over the rolling hoops. Those raised ribs around the drum are always wider than the actual body, so measuring there will throw off your numbers. Be sure to measure the flat, main surface of the drum instead.

Dents and bulges are another classic pitfall. If you measure across a damaged section, your reading won't be accurate. Always find a smooth, undamaged spot to get a true dimension.

Pro Tip: If you have a flexible measuring tape, wrap it around the body of the drum to get the circumference. Divide that number by Pi (π ≈ 3.14159), and you'll get the diameter. This is a great trick for double-checking your direct measurements and helps smooth out any minor imperfections in the drum's shape.

Don't forget about manufacturing tolerances. No two drums are perfectly identical, and their actual size can differ slightly from the official specs, usually by a few millimetres.

Here’s a quick recap of what to measure:

• External Diameter: Go from rim to rim across the top, but stay clear of the rolling hoops.
• Internal Diameter: Measure from the inside wall to the opposite inside wall. This is critical for anything you plan to put inside the drum.
• Height: Measure from the very bottom of the drum to the top edge of the chime (the rim).

By sticking to these simple steps and keeping an eye out for those common errors, you can be confident that the specs you record on-site are accurate. It's the best way to guarantee your equipment and storage solutions will fit perfectly every time.

Getting to Grips with Bung Hole Sizes and Placement

While the drum's overall diameter matters for storage, it’s the bung holes on tight-head models that make them functional. These threaded openings are your gateways for filling, pouring, and venting. Getting their specs right is absolutely critical for making sure your pumps, taps, and other fittings are compatible.

You'll find that most steel and plastic tight-head drums come with two standard bung holes on the top lid. This isn't by accident; it's a long-standing industry design for handling liquids safely and efficiently. One hole is for getting the product out, and the other is a vent that lets air in for a smooth, uninterrupted flow.

Standard Bung Sizes and Threads

The two bung holes aren't identical—they serve different purposes and follow a specific standard to ensure pumps and accessories from different manufacturers will fit.

• Large Bung (Fill/Pump Port): This is your main access point, a 2-inch (50 mm) NPT opening. It’s where you’ll fill the drum or insert a pump.
• Small Bung (Vent Port): The smaller opening is a ¾-inch (19 mm) NPT bung. This one’s the breather hole, letting air in as liquid flows out to prevent a vacuum from forming.

That "NPT" you see stands for National Pipe Taper. It’s the North American standard for the tapered threads you find on pipes and fittings. This tapered shape is key—it creates a tight, leak-proof seal when you screw in a fitting, which is obviously essential when you're dealing with liquids.

Key Insight: When you're buying a pump or tap, don't just stop at the diameter of the 55-gallon drum. You absolutely have to confirm that your new gear has the right NPT threading—either 2-inch or ¾-inch. This one small check guarantees a perfect, spill-free connection and saves you a ton of operational headaches.

Matching Drum Diameter to Handling Equipment

When it comes to handling 55-gallon drums, a single measurement trumps almost everything else for safety and efficiency: the outside diameter. This is the critical dimension you need to match with your dollies, lifters, palletizers, and even drum heaters. Getting it wrong can lead to unstable loads, dangerous spills, or equipment that simply won't fit.

Think about it this way: a standard drum dolly is built with a ring perfectly sized for the typical 22.5-inch diameter of a steel drum. If you try to force a wider, 23.5-inch plastic drum onto it, the fit will be precarious at best. The drum won't seat properly, making it wobbly, difficult to move, and a serious tipping hazard.

Ensuring a Proper Fit

To head off these kinds of problems, always check the maximum diameter your equipment can handle and compare it against the specs for your drums. It’s a simple step that can save you from buying the wrong gear and prevent major headaches on the warehouse floor.

Here’s where that diameter measurement really matters in practice:

• Drum Dollies: The dolly's inner ring needs to be just a bit larger than the drum's outer diameter to allow it to seat securely without rattling around.
• Drum Lifters and Grabbers: The jaws or clamps on these devices must be able to close firmly around the drum's body. An oversized diameter might prevent them from getting a safe grip, especially around bulky rolling hoops or the locking ring on an open-head drum.
• Heating Blankets: A heating blanket's length is designed to match a drum's circumference (which is just Diameter × π). A blanket made for a skinny steel drum won't be long enough to wrap completely around a thicker plastic one, creating hotspots and inefficient heating.
• Palletizing: A standard 48" x 48" pallet is perfectly designed to hold four drums with a 22.5-inch diameter, leaving just enough wiggle room. This configuration maximizes your storage footprint and keeps the load stable.

Remember, moving drums is just one part of the logistics puzzle. For a truly efficient workflow, you also need to consider your loading dock setup, which includes things like Choosing the Right Dock Leveler. Paying attention to the drum's diameter is the first step to making sure every piece of your operation works together without a hitch.

Frequently Asked Questions About Drum Dimensions

When you're trying to fit a drum into a tight space or match it with specific equipment, a fraction of an inch can make all the difference. It's no surprise that we get a lot of questions about the exact dimensions of a 55-gallon drum.

Here are some straight-to-the-point answers to the most common questions we hear, helping you clear up any confusion about drum diameter and other key specs.

Are All 55-Gallon Drums the Same Diameter?

Not at all. While there's a common industry standard, you can't assume every drum will be identical. The benchmark for a standard steel drum is an outside diameter of roughly 22.5 inches (57.2 cm), but this isn't a universal rule.

The material and the style of the drum are the two biggest factors that change its dimensions.

• Plastic Drums: To get the same strength as steel, plastic drums need thicker walls. This extra material often bumps their outside diameter up to about 23.5 inches (59.7 cm).
• Open-Head Drums: These drums have a removable lid held on by a locking ring. That ring adds a little extra width right at the top, which can sometimes interfere with certain types of drum lifters or tight-fitting covers.

The bottom line? If the fit is critical for your setup, always double-check the manufacturer's spec sheet before you buy.

What Is the Difference Between a 55-Gallon and 208-Litre Drum?

They're essentially the same thing, just described in different units. A 55 US gallon drum technically holds 208.2 litres. You'll often see these drums marketed as 208-litre or even 205-litre drums, which are just the metric equivalents used in different parts of the world.

That said, don't assume the physical dimensions are perfectly interchangeable. Even small variations in height or diameter can cause headaches in automated systems or tightly packed storage racks. Always confirm the exact measurements to ensure everything lines up.

How Do I Calculate the Circumference of a 55-Gallon Drum?

Figuring out the circumference is easy if you know the diameter. Just use the classic formula: Circumference = π (Pi) × Diameter.

For a standard steel drum with a 22.5-inch diameter, the circumference comes out to about 70.7 inches (or 179.5 cm).

Why does this matter? This number is crucial when you're buying anything that wraps around the drum. Think drum heaters, insulation blankets, or large vinyl labels. Getting the circumference right ensures a snug, professional fit with no awkward gaps or messy overlaps.

---
