55 Gal Oil Drum Dimensions A Complete Reference Guide

When you're trying to figure out logistics, knowing the standard 55 gal oil drum dimensions is your best starting point. While the exact numbers can shift a bit based on the material and specific design, having a solid baseline is essential for planning out your storage and transport.

Quick Reference Chart for Drum Dimensions

Here's a quick look at the typical height, diameter, and weight for both steel and plastic 55-gallon drums. This should help you quickly compare the two for any planning you're doing.

This image gives you a great visual on the key measurements, pointing out those small but important differences between steel and plastic drums that can definitely affect your setup.

So, what are the actual numbers we're talking about? A standard 55-gallon oil drum—the kind you see used for shipping everywhere—generally stands between 33 to 36.75 inches tall. Its diameter typically falls in the range of 22.375 to 24.5 inches.

These aren't exact figures because they can change depending on whether the drum is made of steel or plastic, or if it's an open-head versus a tight-head model. Steel drums, for example, usually have an internal diameter of about 22.5 inches, but the reinforcing rings, or "chimes," on the outside will make the external measurement a bit wider. For a deeper dive, check out our guide on the diameter of a 55-gallon drum.

Key Takeaway: Before you lock in any storage plans or buy handling equipment, always double-check the exact dimensions on the manufacturer's spec sheet. Even a half-inch difference can throw a wrench in your plans, affecting how things fit. A quick check upfront can save you a lot of headaches and money down the road.

Decoding Steel Drum Specifications

While "55-gallon drum" sounds like a single, standard item, the reality for steel drums is a bit more nuanced. Getting the exact 55 gal oil drum dimensions right is critical because these steel containers are the absolute workhorses of industrial storage and shipping. The specs go way beyond just height and width—they affect how you handle them, what you can store in them, and even whether you're meeting regulations.

First off, you'll generally run into two types of steel drums: tight-head (also called closed-head) and open-head. A tight-head drum is the kind with a permanently fixed top, featuring only a couple of small holes, called bungs, for filling and emptying. On the other hand, an open-head drum has a completely removable lid held on by a clamp-like bolt or lever-lock ring, which is perfect for solids or thick, goopy liquids. This basic design choice changes their final measurements.

Key Dimensional Factors for Steel Drums

One of the most noticeable features on any steel drum is the set of raised rings circling the body. These are called rolling hoops or chimes, and they're not just for looks. They add a ton of structural strength and are the main point of contact for equipment like drum dollies or forklift attachments.

• External Diameter: You’ll want to measure this across the rolling hoops, as that's the widest point. A standard steel drum usually measures about 23 to 23.5 inches (584 to 597 mm) across.
• Internal Diameter: Inside, the usable space is a bit smaller, typically right around 22.5 inches (572 mm). This is the number you need for calculating the drum's true volume.
• External Height: A typical tight-head steel drum stands about 34.5 inches (876 mm) tall. The open-head versions can be a touch taller because of the lid and its locking ring.

The thickness of the steel itself—its gauge—also matters a great deal. A lower gauge number means thicker, tougher steel. This makes the drum heavier when empty but also gives it much better resistance to punctures and dents, which is a huge factor for UN/DOT ratings when you're moving hazardous materials.

Practical Insight: A quick tip from the field: when you're setting up warehouse racking, always, always use the external diameter across the rolling hoops for your clearance math. Being off by even an inch can mean your drums won't fit, leading to a major logistical headache and wasted space.

Understanding Bung Hole Specifications

On tight-head drums, those bung holes I mentioned are standardized so that pumps, faucets, and vents from different manufacturers will fit properly. You'll almost always find two threaded openings on the top.

• One 2-inch (51 mm) NPT (National Pipe Thread) opening for filling or connecting a pump.
• One ¾-inch (19 mm) NPT opening, which is used for ventilation or smaller fittings.

The exact placement and threading of these bungs are critical for creating a secure, leak-proof seal. For anyone who deals with technical sheets, understanding how these measurements are documented is key. You can get a better handle on the general rules for accurate dimensioning to see how these industrial standards are officially communicated.

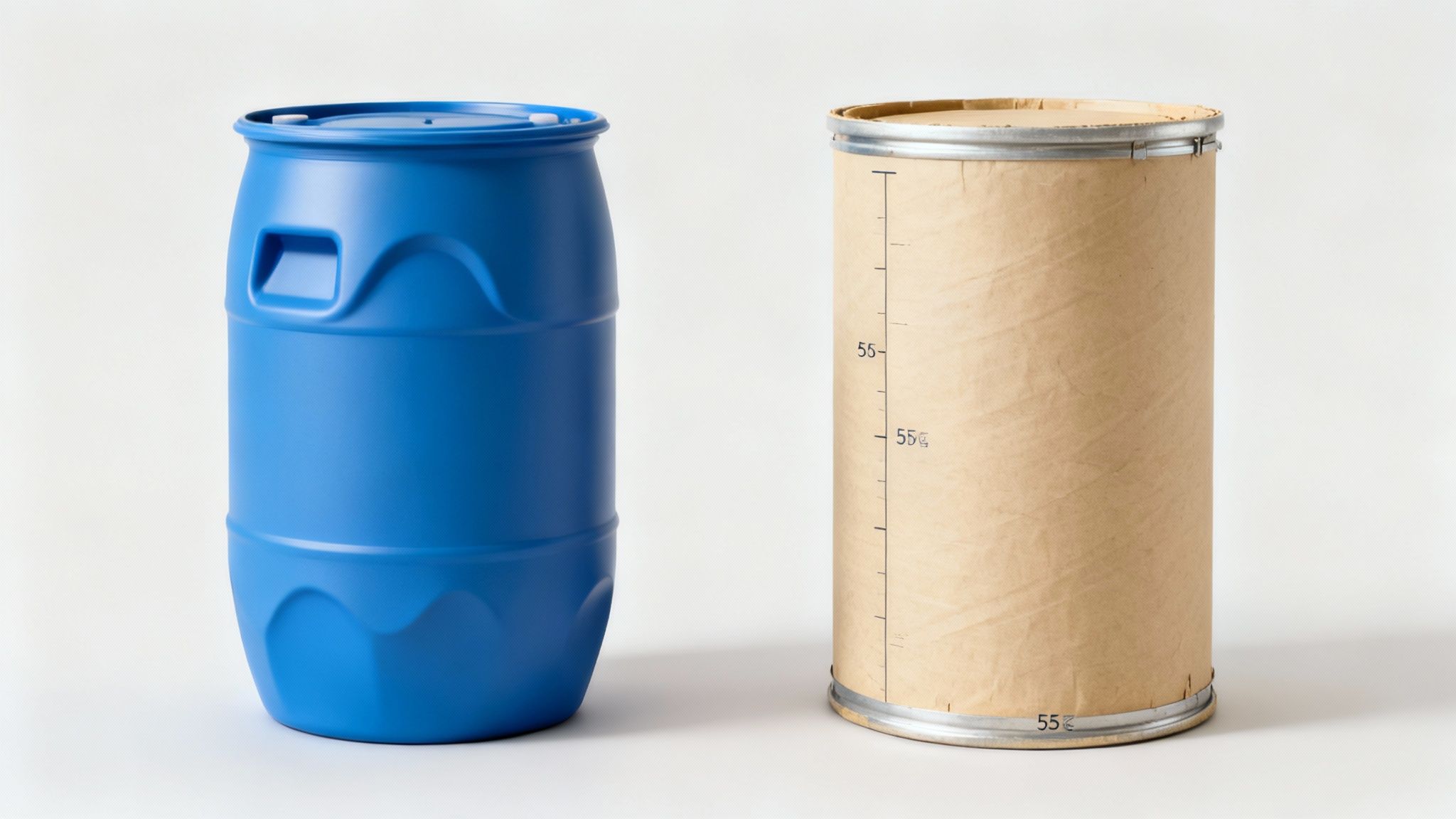

Plastic vs. Fibre Drum Dimensions: What's the Difference?

While the classic steel drum sets the standard, you'll often find plastic and fibre drums used for specific jobs. Their unique materials and construction give them distinct advantages, and understanding how their 55 gal oil drum dimensions differ is crucial for picking the right container. It all comes down to what you're storing, how much weight matters for shipping, and your storage setup.

Plastic drums, usually made from high-density polyethylene (HDPE), are blow-moulded. This process can give them a slightly more rounded or bulging shape than the crisp lines of a steel drum, which is something to keep in mind if you're packing them into a tight space.

The real game-changer, though, is their weight. An empty 55-gallon plastic drum is incredibly light, weighing in at just 21 pounds (9.5 kg) on average. That's almost half the weight of its steel equivalent, a difference that translates into serious shipping cost savings when you're moving a full truckload.

High-Density Polyethylene (HDPE) Drum Dimensions

Plastic drums are the go-to choice for corrosive materials that would eat right through steel. Manufacturers keep their dimensions very close to the industry standard to make sure they work with all the same dollies, palletizers, and handling gear you already have.

• Typical External Height: Approximately 35.25 inches (895 mm).
• Typical External Diameter: Around 23.25 inches (590 mm).

As you can see, these numbers are nearly identical to steel drums, which means they'll still fit perfectly four-to-a-pallet. The main differences you'll notice in practice are the lighter weight and the slight give in the material itself.

A Look at Fibre Drum Variations

Fibre drums are another fantastic lightweight option, but they're primarily designed for dry or solid goods. Since they're made from wound paperboard, their dimensions can change a bit depending on the strength needed for the contents. A heavy-duty fibre drum will naturally have thicker walls, which can slightly increase its outer size and decrease its internal volume.

Practical Consideration: Most fibre drums have straight, smooth sides without the rolling hoops found on steel drums. This can sometimes let you pack them together more tightly. On the flip side, they aren't meant for most liquids and are vulnerable to moisture damage unless they have a proper liner and are stored in a dry environment.

Ultimately, deciding between steel, plastic, and fibre is a balancing act. You have to weigh the nature of the product you're storing, the potential savings on shipping, and the real-world dimensional needs of your warehouse or transport vehicle.

Calculating Drum Weight and Volume Capacity

https://www.youtube.com/embed/ueV29E9X-3g

Knowing the basic 55 gal oil drum dimensions is just the start. To handle these drums safely and efficiently, you really need to get a handle on their weight and volume. First up is the tare weight—what the drum weighs when it’s completely empty. This number changes quite a bit depending on what the drum is made of.

A typical steel drum tips the scales at around 38 to 48 pounds (17 to 22 kg). In contrast, its plastic (HDPE) counterpart is much lighter, usually weighing about 21 pounds (9.5 kg). That difference might not sound like much, but it adds up quickly when you're talking shipping costs and manual handling.

Calculating Total Filled Weight

Once you fill a drum, its final weight is all about the density of the liquid inside. To figure this out, you'll need the liquid's specific gravity, which is just its density compared to water. For reference, a US gallon of water weighs about 8.34 pounds.

Here’s a straightforward formula to get a good estimate:

Total Weight = (Liquid Volume in Gallons × 8.34 lbs/gal × Specific Gravity) + Tare Weight of Drum

Let's walk through an example. Say we're filling a steel drum with standard motor oil, which has a specific gravity of roughly 0.87.

• Liquid Weight: 55 gal × 8.34 lbs/gal × 0.87 = 399.5 lbs
• Total Filled Weight: 399.5 lbs (oil) + 48 lbs (drum) = 447.5 lbs

Getting this calculation right is critical. It helps you stay within pallet weight limits and your vehicle’s payload capacity, preventing dangerous situations and expensive mistakes.

Important Note: For the most accurate weight, always check the product's Safety Data Sheet (SDS) for its exact specific gravity. This is especially important when you're dealing with hazardous or unfamiliar materials.

Nominal Volume vs. Brimful Capacity

Here’s a little secret from the industry: a "55-gallon" drum rarely holds exactly 55 gallons. That number is its nominal capacity, which is just the standard name for it. The actual brimful capacity—the total volume if you filled it right to the very top—is usually a bit more, often somewhere between 57 and 58 gallons.

Of course, you never actually fill a drum to the brim. Safety standards and best practices demand that you leave some empty space at the top, called headspace or ullage. This gap gives the contents room to expand with temperature changes, which is a big deal. Overfilling can create dangerous pressure, potentially causing the drum to leak or even burst.

For those operating in regions like California, with strict environmental rules, following these transport and storage regulations is non-negotiable. Proper filling protocols, like those outlined by the Department of Toxic Substances Control (DTSC), are mandatory to protect both people and the environment. You can read more about California's drum handling standards at bascousa.com.

It’s also handy to know the metric conversion. You can see exactly how 55 gallons convert to litres in our detailed guide.

Understanding Dimensional Standards and Regulations

The familiar, uniform size of the 55-gallon drum is no coincidence. It’s the result of strict standards, both nationally and internationally, that dictate everything from wall thickness to how a drum performs under stress. These regulations are all about safety, consistency, and making logistics work smoothly, especially when dealing with hazardous materials.

At the core of this system are the UN/DOT ratings. You’ll see these codes stencilled on the side of a drum, and they're essentially a universal language. That string of letters and numbers tells handlers, shippers, and regulators precisely what the drum is built for and what it can safely contain.

Deciphering UN Markings

Getting a handle on these markings is crucial for staying compliant. At first glance, a code like UN 1A1/Y1.8/300 might just look like a jumble of characters. But each part has a very specific meaning that relates directly to the drum's construction and performance.

Let's break that example down:

• 1A1: This tells you the container type. The '1' means it’s a drum, 'A' specifies it’s made of steel, and the final '1' indicates a non-removable or 'tight-head' design.
• Y: This letter corresponds to the Packing Group the drum is rated for. 'Y' means it's approved for substances in Packing Group II (medium danger) and Packing Group III (low danger).
• 1.8: This figure is the maximum specific gravity of the liquid the drum is certified to hold.
• 300: This number represents the hydrostatic pressure test value, in kilopascals (kPa), that the drum has withstood without any leaks.

Key Takeaway: A UN rating isn't just a label; it's a certification. It proves the drum has passed a battery of tough performance tests, including drop, leak, and stacking tests. Standardized dimensions are fundamental to a drum’s ability to pass these evaluations and demonstrate its structural integrity.

Ultimately, these regulations ensure that a 55-gallon drum from one manufacturer will fit and function just like a drum from another, anywhere in the world. This level of standardization is what makes the 55-gallon drum such a reliable workhorse in global industry, offering a predictable and safe way to move goods across the planet. Following the rules isn’t just about compliance—it’s about ensuring safety and operational reliability from the factory floor to the final destination.

Optimizing Logistics for Pallets and Storage

Knowing the standard 55 gal oil drum dimensions is more than just trivia; it's the key to turning a logistical headache into a smooth, efficient operation. These measurements aren't random. They've been honed over decades to fit perfectly within the global supply chain, especially when it comes to the humble pallet.

The dimensions of a standard 55-gallon drum—roughly 23.5 inches (597 mm) in diameter and 34.5 inches (876 mm) tall—are tailor-made for palletizing. This isn't an accident. This specific sizing is what allows for such efficient loading, stacking, and storing across countless industries.

Palletization Strategies and Footprint

So, how do they fit? The most common and stable arrangement is placing four 55-gallon drums onto a single, standard 48" x 48" pallet. This setup creates a nearly perfect square, which is exactly what you want for maximizing stability and using every inch of space in a transport truck or on a warehouse rack.

Here's a quick breakdown of what that looks like:

• Total Footprint: A pallet loaded this way will take up a space of about 48 inches by 48 inches.
• Total Height: You'll have the drum height plus the pallet's height (which is usually 5-6 inches), bringing the total to around 40 inches.
• Safety Margin: It’s always smart to leave a few extra inches of clearance on every side. This gives a forklift or pallet jack operator the room they need to manoeuvre safely without causing damage.

This predictable footprint is a massive help for logistics managers. It allows them to calculate truckload capacities with precision and design warehouse layouts that don't waste valuable space. And, if you're dealing with anything that could spill, using the right secondary containment is a must. You can find options like a spill containment pallet designed specifically for this job.

Expert Tip: Before you even think about stacking drums, check their UN rating for stacking strength. Never stack loaded drums directly on top of each other without a proper pallet or dunnage in between. It's a recipe for instability and potential disaster.

Clearance for Doorways and Aisles

Of course, getting the drums onto a pallet is only half the battle. You also have to move them around your facility. Always make sure your doorways and aisles are wide enough to handle a loaded pallet, keeping in mind that a forklift makes the entire package wider.

A good rule of thumb is to maintain aisle widths of at least 8 to 12 feet for standard forklift operations. To get a better sense of how to plan for storing 55-gallon drums and other bulky items, it can be helpful to check out a comprehensive self-storage size guide.

Common Questions About Drum Dimensions

Even with all the specs laid out, you probably still have a few questions floating around. That’s perfectly normal. This section is here to give you quick, straightforward answers to the things people ask us most often about 55-gallon oil drum dimensions.

Think of it as your go-to spot for those specific details that can make or break your planning.

Are All 55 Gallon Drums the Same Size?

In short, no. While they're highly standardized, they aren't all identical. You’ll run into slight variations in their dimensions based on a few key factors.

These differences are usually small, but they can be important.

• Material: A steel drum might have different wall thicknesses compared to a plastic (HDPE) or fibre drum, which can lead to minor changes in the overall size.
• Design Type: An open-head drum, with its removable lid and locking ring, often ends up being a little taller than a sealed tight-head drum.
• Manufacturer: Most makers stick closely to industry norms, but you can still find subtle differences from one brand to another.

Even with these little variations, the dimensions stay within a tight range. This is crucial because it ensures the drums work with standard handling equipment like dollies, forklifts, and palletizers.

How Many Litres Are in a 55 Gallon Drum?

A standard 55 U.S. gallon drum holds approximately 208.2 litres.

It’s important to know that this is the "nominal" or official capacity. The actual brimful capacity—the absolute maximum it can hold if you fill it to the very top—is usually a bit more. But you should never do that. Leaving enough headspace is a critical safety measure to allow for expansion.

What Is the Difference Between a Drum and a Barrel?

People often use these words interchangeably, but in industry, they mean very different things.

A "drum" is the physical 55-gallon cylindrical container you see. A "barrel," on the other hand, is a specific unit of measurement, especially in the oil industry, standardized at 42 U.S. gallons (which is about 159 litres). So, a 55-gallon drum is not the same as a 42-gallon oil barrel.

How Do I Accurately Measure a Drum?

Getting the right measurements is key for any kind of logistical planning. For the best results, just follow a simple, consistent method.

1. Height: Stand the drum on a perfectly flat and level floor. Measure straight up from the bottom edge to the very top of the rim.
2. Diameter: On a steel drum, you'll want to measure across its widest point, which is usually the rolling hoops (or chines). Using a large set of calipers is ideal for accuracy, but a measuring tape pulled tight across the middle will get the job done too.

---
